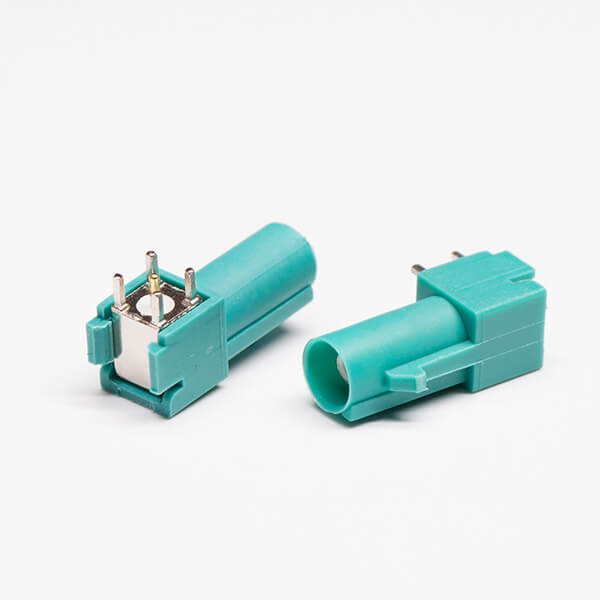

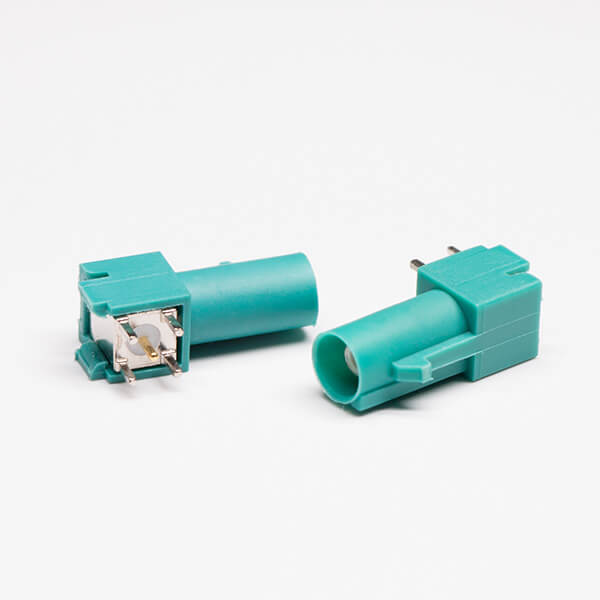

FAKRA Connector Types E Green Plug Receptacle PCB Mount Through Hole

Part NO.:1.15

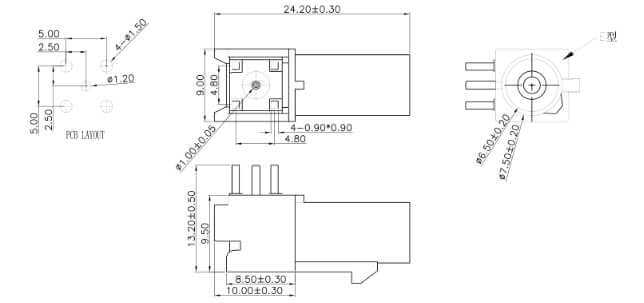

Size: L24.20*W9.00*H13.20 mm
Tags: RFC Connector,PCB Mount,FAKRA Plug,Angled


  • FAKRA rf coax circular connector, designed for automotive industry. With secondary locking structure, color discrimination and misplaced structure to prevent mismatch.

  • Safe and fully automatic assembly system to ensure the competitive price and high efficiency. Achieve the ROHS standard.

  • Widely used in car navigation systems, remote control systems, car TV, audio equipment, antenna and so on.

  • Multi mode and specification for choice. OEM&ODM acceptable.

  • FREE samples for test with 1 year’s warranty.

Main Specifications
Frequency Range DC-6GHz
Insulation Resistance ≧ 500MΩ
Voltage Rating 60V AC(rms)
Current Rating 0.5A AC
Withstanding Voltage 200V AC
Working Temperature -40°C to +90°C


Payment Term
Place of Origin Dongguan, China
Price Term EXW / FOB / CIF
Term of Payment T/T, Paypal, West Union
Delivery Term
Lead Time 7-10 days regularly
Means of Transport Express(DHL/FedEx/UPS/TNT, etc)
Shenzhen Port By Sea
Package Blister Box+Carton / PE bag+Carton
Carton/CBM 39.5*24.5*19.5 cm
49.5*24.5*19.5 cm
47*41*21 cm
34*34*30 cm
